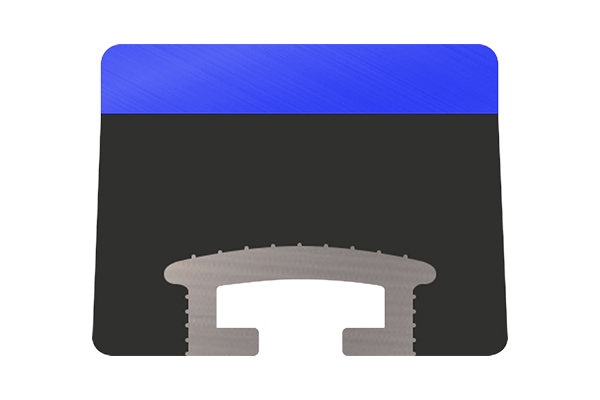

IB-LD-A impact bar suitable for conveyor equipment under various working conditions. The design of arch shape aluminum part and special damping rubber provides strong damping protection for the conveyor belt and reduces the damage to the belt caused b…
Item | Length.mm | Width.mm | Thickness | Thickness of UHMWPE layer |
Impact Bar | 600 | 100 | 50 70.5 | 12.5 |
700 | ||||
750 | ||||
800 | ||||
900 | ||||
1000 | ||||
1220 | ||||
1300 | ||||
1400 | ||||
1500 | ||||
1520 | ||||
1600 | ||||
1800 |
UHMWPE | |
Tensile Strength | 30 Mpa |
Elongnation at Break | 300% |
Hardness | 96-98 Shore A |
Gravity | 0.93-0.94 g/cm³ |
Coefficient of friction | 0.07 |
Rubber part | |
Tensile Strength | 19 Mpa |
Elongnation at Break | 350% |
Color | Black |
Belt Width.mm | Qty of impact bar | ||
Left | Center | Right | |
550 | 1 | 2 | 1 |
650 | 2 | 2 | 2 |
800 | 2 | 3 | 2 |
1000 | 3 | 3 | 3 |
1200 | 3 | 4 | 3 |
1400 | 4 | 5 | 4 |
1600 | 5 | 5 | 5 |
1800 | 5 | 6 | 5 |
2000 | 6 | 6 | 6 |
